怎么用这一套
全部型号
型号参数表
点击表头可排序
← 左右滑动查看完整参数 →
| 型号 | 名称 | 安装方式 | 尺寸 | 颜色 |
|---|
抽屉滑轨安装示意
孔距是镜背安装的必问项。未拿到确认数据的型号，我们标注待确认，不填估算值。
滑轨款的装配顺序
抽屉内活动件先落在抽屉侧板的滑轨位，再装活动件本体，最后装面板。顺序反了会需要拆装一次，装配节拍上不划算。
行程与承重
这两项与抽屉内空和放入物品重量直接相关，需要按实际柜体确认，我们不填通用数值。图册未给的我们标待确认。

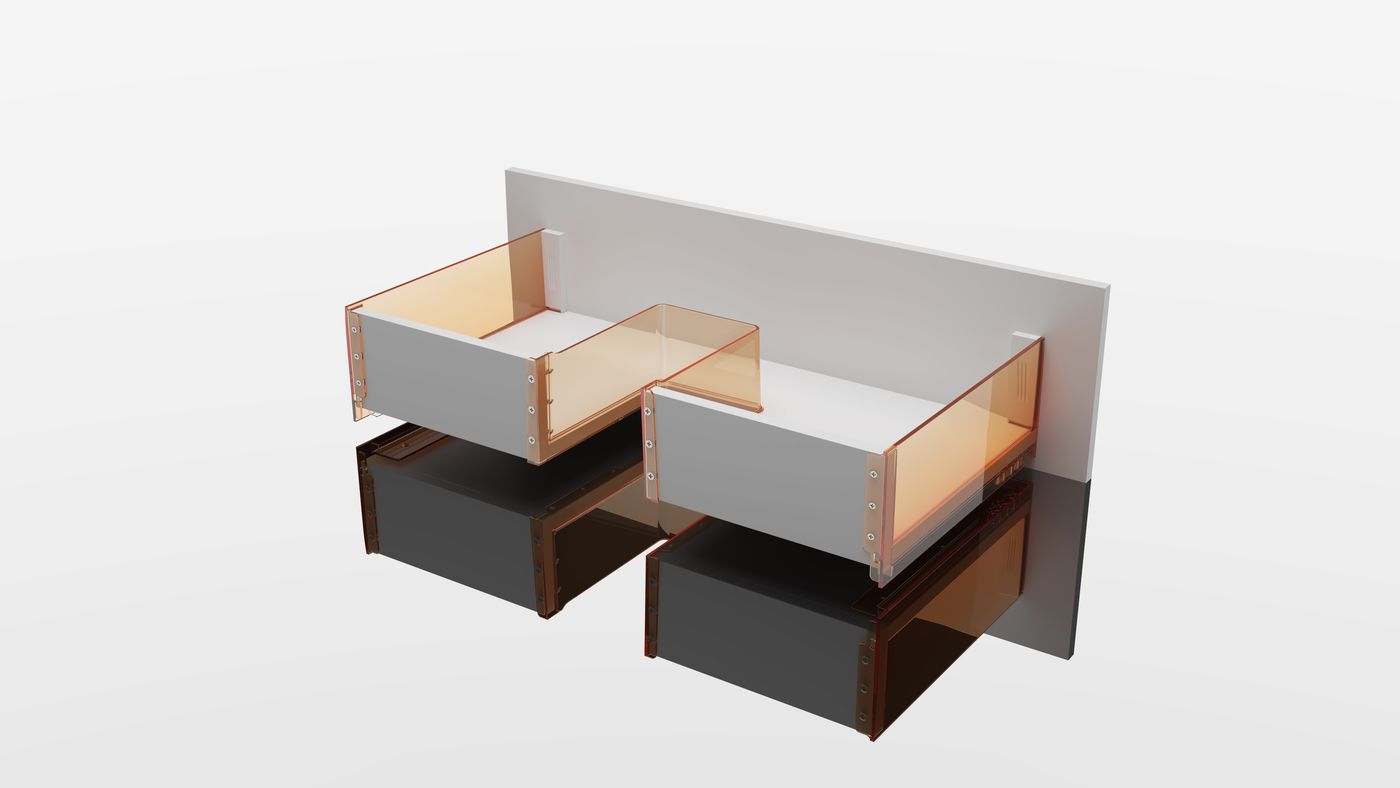

U 型槽怎么开
U 型槽靠开槽扩展横截面。开槽位置要与柜体结构对齐，槽深与槽宽要按型材实测。开槽尺寸不确认的直接问询。
Assembly sequence for slide-rail models
The movable components land on the drawer side rail first, then the component body, then the panel. Reversing the order means opening it up again — never worth it on takt time.
Travel and load
Both depend directly on the drawer cavity and the weight placed in it, so they must be confirmed against the real cabinet. We do not fill in generic values; anything the catalog does not give is marked to be confirmed.
How the U-groove is cut
The U-groove extends the cross-section by cutting the panel. The cut position must align with the cabinet structure, and groove depth and width are measured from the actual profile. Ask us directly if the cut size is unconfirmed.
